Formdrill
Fomdrill tools are made of a special carbide. Standard Formdrill tools are available from 1.8mm. up to 25.4mm.
(0.070" - 1.000") diameter Larger drill sizes are available on request.
Formdrill tools can be used in most ferrous and non-ferrous metals including mild steel, stainless steel, copper, brass and aluminum. In general, all malleable materials can be thermal drilled.
Formdrill can be used in material thickness ranging from 1.0mm. up to 12.0mm. (0.040" - 0.500") depending on required hole size.
State of the art grinding technology ensures our tools are manufactured to the highest precision.
There are four types of standard formdrill tools: Short, Short/Flat, Long and Long/Flat:
Formdrill
Fomdrill tools are made of a special carbide. Standard Formdrill tools are available from 1.8mm. up to 25.4mm.
(0.070" - 1.000") diameter Larger drill sizes are available on request.
Formdrill tools can be used in most ferrous and non-ferrous metals including mild steel, stainless steel, copper, brass and aluminum. In general, all malleable materials can be thermal drilled.
Formdrill can be used in material thickness ranging from 1.0mm. up to 12.0mm. (0.040" - 0.500") depending on required hole size.
State of the art grinding technology ensures our tools are manufactured to the highest precision.
There are four types of standard formdrill tools: Short, Short/Flat, Long and Long/Flat:
Short
DESCRIPTION

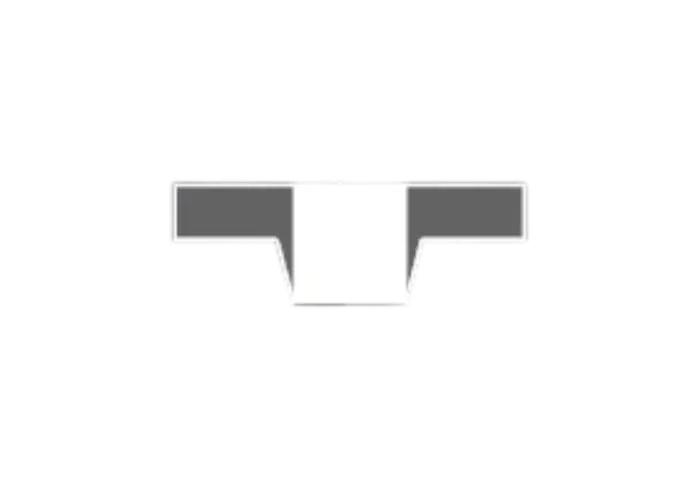

Formdrill tool with short parallel sides (L5) behind the leading taper without cutters. This style will create a conical bushing with a collar.

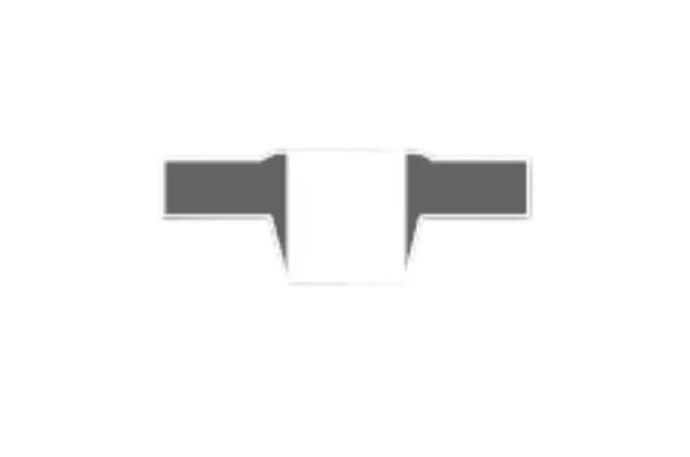

SCHEMATIC
APPLICATION
Used in round tubing, square tubing and sheet metal.
USAGE
Thin materials in combination with formtap.
The initial tapered bushing guarantees 100%
formed threads over the complete length of the Formdrill bushing. Bushing is straight (cylin drical) after tapping.
Short/Flat
DESCRIPTION

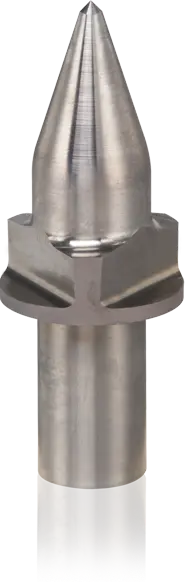

Formdrill tool with short parallel sides (L5) behind the leading taper with cutters. This style creates a conical bushing with flat surface.

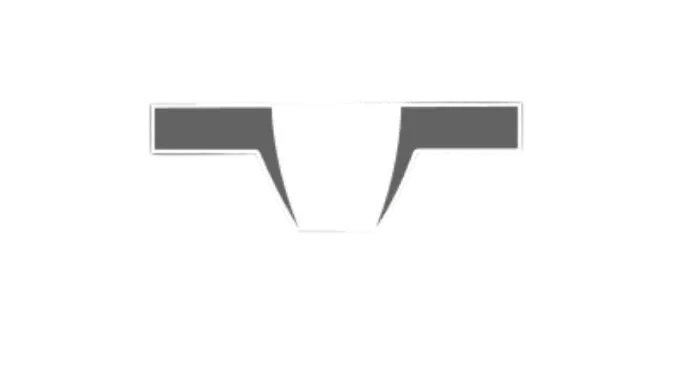

SCHEMATIC
APPLICATION
Used in square tubing and sheet metal.
USAGE
Thin materials in combination with formtap. The initial tapered bushing guarantees 100% formed threads over the complete length of the Formdrill bushing. Bushing is straight (cylin drical) after tapping.
Long
DESCRIPTION

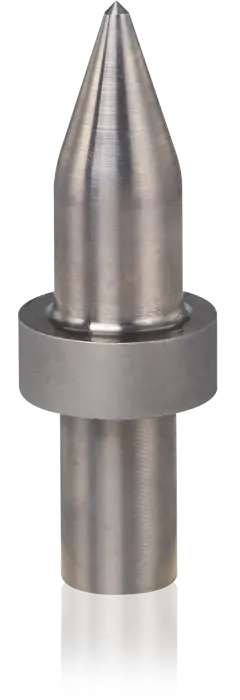

Formdrill tool with longer parallelsides (L5) behind the leading taper without cutters, that creates a cylindrical bushing with collar.
SCHEMATIC
APPLICATION
Used in round tubing, square tubing and sheet metal.
USAGE
Thicker material with formtap or with cutting
taps. The short version Formdrills would produce bushings that are too tapered for tapping.
Long/Flat
DESCRIPTION

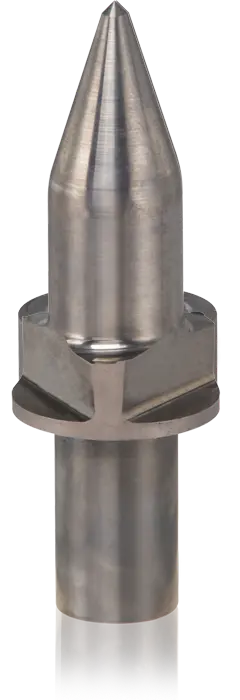

Formdrill tool with longer parallel sides (L5) behind the leading taper with cutters, that creates a cylindrical bushing with a flat surface.
SCHEMATIC
APPLICATION
Used in square tubing and sheet metal.
USAGE
Thicker material with formtap or with cutting taps.
The short version Formdrills would produce bushings that are too tapered for tapping.
Short
DESCRIPTION

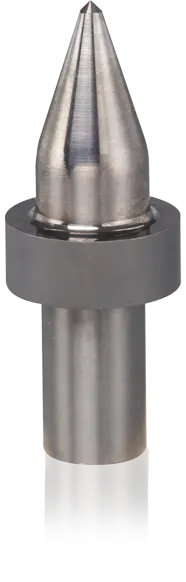

Formdrill tool with short parallel sides (L5) behind the leading taper without cutters. This style will create a conical bushing with a collar.
APPLICATION
Used in round tubing, square tubing and sheet metal.
USAGE
Thin materials in combination with formtap.
The initial tapered bushing guarantees 100% formed threads over the complete length of the Formdrill bushing. Bushing is straight (cylin drical) after tapping.

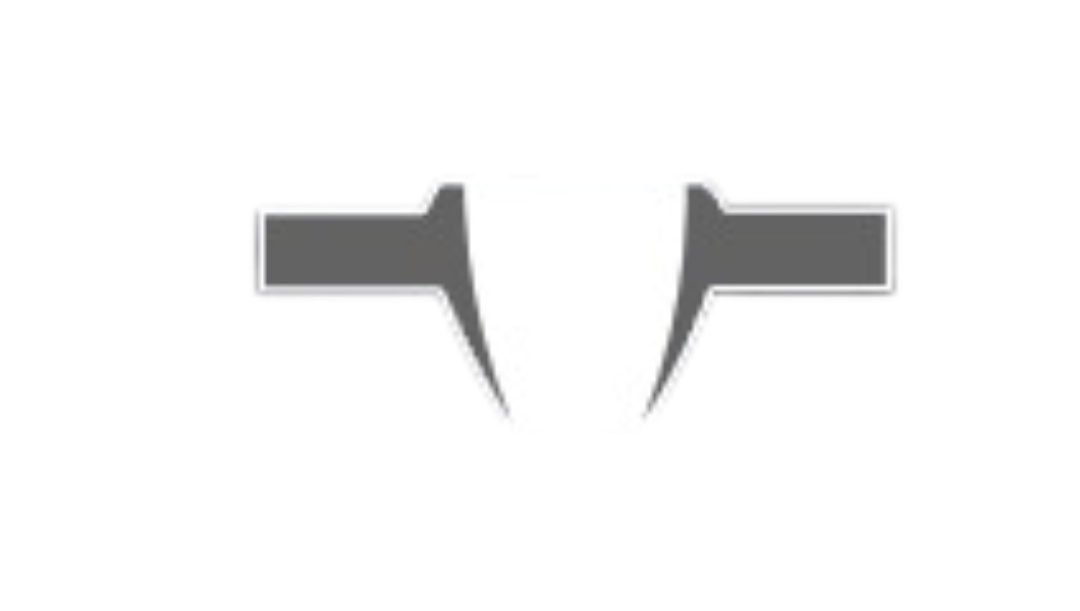

SCHEMATIC
Short/Flat
DESCRIPTION
Formdrill tool with short parallel sides (L5) behind the leading taper with cutters. This style creates a conical bushing with a flat surface.

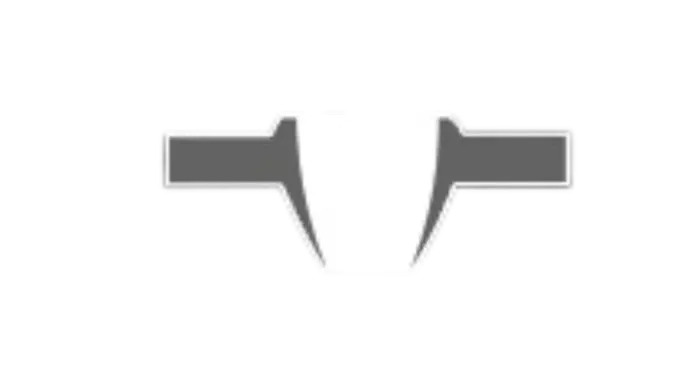

SCHEMATIC
APPLICATION
Used in round tubing, square tubing and sheet metal.
USAGE
Thicker material with formtap or with cutting taps. The short version Formdrills would produce bushings that are too tapered for tapping.
Long
DESCRIPTION
Formdrill tool with longer parallel sides (L5) behind the leading taper without cutters, that creates a cylindrical bushing with collar.
SCHEMATIC
APPLICATION
Used in round tubing, square tubing and sheet metal.
USAGE
Thicker material with formtap or with cutting taps. The short version Formdrills would produce bushings that are too tapered for tapping.
Long/Flat
DESCRIPTION
Formdrill tool with longer parallel sides (L5)
behind the leading taper with cutters, that creates a cylindrical bushing with a flat surface.
SCHEMATIC
APPLICATION
Used in square tubing and sheet metal.
USAGE
Thicker material with formtap or with cutting taps. The short version Formdrills would produce bushings that are too tapered for tapping.
