Portable Mag Drill
Use the Formdrill with our Mag Drill and take it with you into the field.
Unlike hand drills, which lack the necessary spindle speed, motor power, and stability, the Mag Drill is specifically designed for the Formdrill process.
Manufactured to the highest quality standards, it handles applications up to M10 in 3.0 mm (7/16-UNC – 1/8 NPT in 0.120" wall).

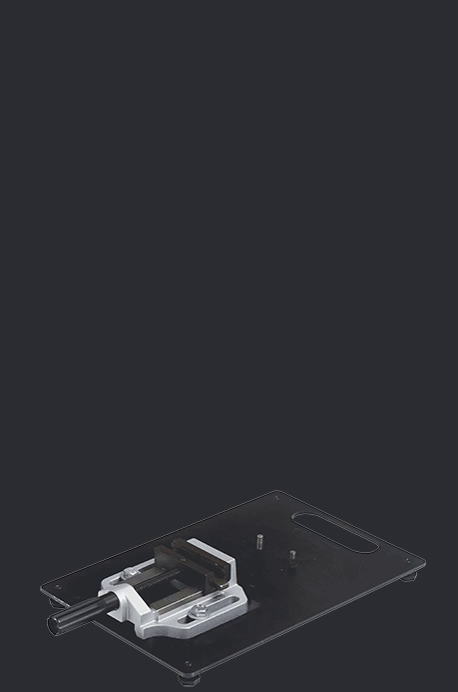

An optional baseplate with locating pins and a machine vise is also available, allowing you to turn the Mag Drill into a portable drill press in just seconds.
Portable Mag Drill
Use the Formdrill with our Mag Drill and take it with you into the field.
Unlike hand drills, which lack the necessary spindle speed, motor power, and stability, the Mag Drill is specifically designed for the Formdrill process.
Manufactured to the highest quality standards, it handles applications up to M10 in 3.0 mm (7/16-UNC – 1/8 NPT in 0.120" wall).
An optional baseplate with locating pins and a machine vise is also available, allowing you to turn the Mag Drill into a portable drill press in just seconds.
Machine Specifications:
- 2,800 Rpm. fixed speed
- 1600 Watt (220V or 110V)
- MT3 spindle
- Metal gears in oil bath
- Hardened dovetail guides
- Strong electro magnetic base
- Safety switch indicator light alerts the
possibility of non-secure magnetic operation
- Hardened rack and pinion
Machine Specifications:
- 2,800 Rpm. fixed speed
- 1600 Watt (220V or 110V)
- MT3 spindle
- Metal gears in oil bath
- Hardened dovetail guides
- Strong electro magnetic base
- Safety switch indicator light alerts the
possibility of non-secure magnetic operation
- Hardened rack and pinion
Mag drill is delivered with Formdrill tool holder, case, safety goggles, protective gloves, safety chain and hex adjustment keys.
Optional baseplate is delivered with 2 locating pins and movable machine vise.
