Lubricants
For both Formdrill and Formtap using the appropriate lubricant is recommended.
This will result in significantly better tool life and ensures a high quality inner surface of your material or bushing.
The Formdrill Lubricant is designed to prolong tool life by reducing material build up on the tool.
Lubricants are available in paste or liquid form.
The Formtap lubricant is used to prevent galling and to guarantee a high quality of the formed threads.
Lubricants
For both Formdrill and Formtap using the appropriate lubricant is recommended.
This will result in significantly better tool life and ensures a high quality inner surface of your material or bushing.
The Formdrill Lubricant is designed to prolong tool life by reducing material build up on the tool.
Lubricants are available in paste or liquid form.
The Formtap lubricant is used to prevent galling and to guarantee a high quality of the formed threads.

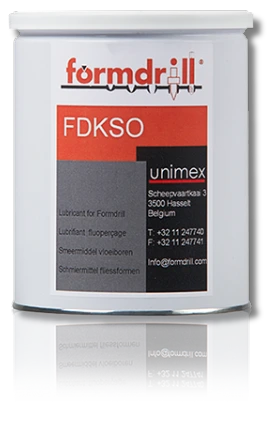

FDSKO
DESCRIPTION
White paste
APPLICATION
Formdrill
USAGE
This lubricant is applied mannually in Formdrill applications. This lubricant may be used for all Formdrill applications.
FDSKO
DESCRIPTION
White paste
APPLICATION
Formdrill
USAGE
This lubricant is applied mannually in Formdrill applications.
This lubricant may be used for all Formdrill applications.

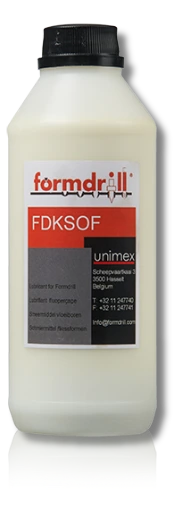

FDSKOF
DESCRIPTION
White liquid
APPLICATION
Formdrill
USAGE
This lubricant is used in automatic spraying equipment for Formdrill applications. We advise the usage of this lubricant
for Formdrill applications up to M8 in 3.0mm. (0.120") steel.
FDSKOF
DESCRIPTION
White liquid
APPLICATION
Formdrill
USAGE
This lubricant is used in automatic spraying equipment for Formdrill applications.
We advise the usage of this lubricant for Formdrill applications up to M8 in 3.0mm. (0.120") steel.

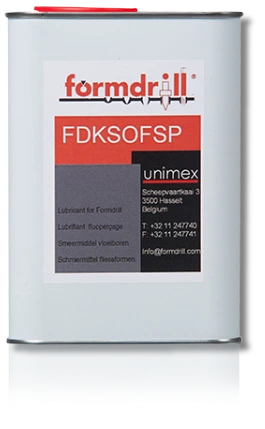

FDSKOFSP
DESCRIPTION
Light-yellow liquid
APPLICATION
Formdrill
USAGE
This lubricant is used in our special
lubricant unit FDLUB250 for Formdrill applications
We advise the usage of this lubricant for
Formdrill applications up to 20.0mm. in 4.0mm. (0.160") steel.
FDSKOFSP
DESCRIPTION
Light-yellow liquid
APPLICATION
Formdrill
USAGE
This lubricant is used in our special lubricant unit FDLUB250 for Formdrill applications.
We advise the usage of this lubricant for Formdrill applications up to 20.0mm. in 4.0mm. (0.160") steel.
FTOIL
DESCRIPTION
Yellow oil
APPLICATION
Formtap
USAGE
This lubricant is used for Formtapping applications.
Can be applied manually or by an automatic spraying system. (FTLUB250-unit).
FTOIL
DESCRIPTION
Yellow oil
APPLICATION
Formtap
USAGE
This lubricant is used for Formtapping applications.
Can be applied manually or by a automatic spraying system. (FTLUB250-unit).
